A direct replacement for the old thermostat in the lounge
Works as required, easy to install

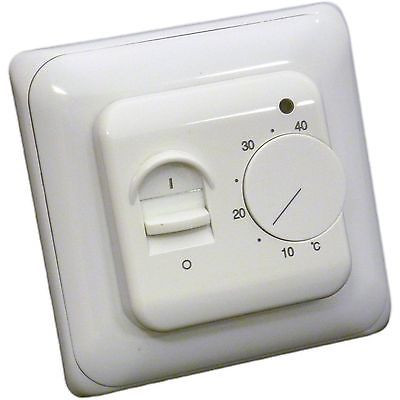

Manual Thermostat that is ultra compact and provides precise control and is easily configured to control the temperature of Wet Underfloor Heating Systems.
Full Specification
Manual thermostat for heating systems
2No. fixing screws
1No. Installation Manual
Features
2-pole safety power switch, On/off control output for heating device
The room thermostat with built-in 10K NTC sensor.
Technical data
Voltage: AC100- 240V 50/60Hz
Power Consumption: 5W
Power load: 16A*
Limitation range: 25°c~55°c
Switching differential: ±1°c
Ambient temperature: -5~40°c
Protective housing: IP20
Housing material: Anti-flammable PC
Dimension: 86mm X 86mm X 16mm flush mount
Certification: CE
* - The thermostat is rated at 16Amp but to ensure you get maximum life from the thermostat, we recommend that you use loads that do not exceed 12.8 Amps. The relay within the thermostat is rated in accordance with the requirements of EN 61810-1:2004 and EN60730-1 which are not representative of 'real life' applications but an arbitrary test method. The lifecycle of the relay contacts within the thermostat are affected by the power loading.If the load does not exceed 12.8Amps then the contact life is extended by more than double when compared with loads of 16 Amp.
