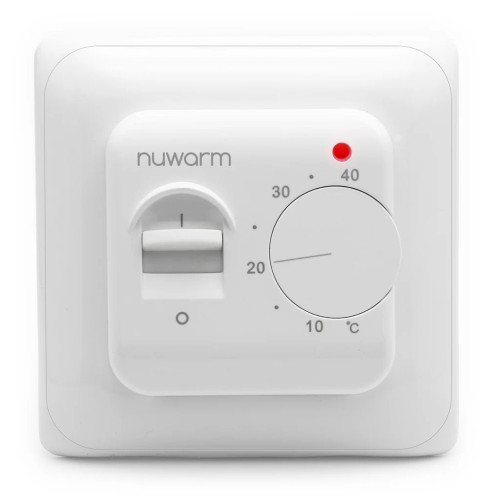

Nuwarm Manual Thermostat

Precise Temperature Control for Electric Underfloor Heating Systems

The Nuwarm Manual Thermostat is designed for easy installation and precise control of electric underfloor heating systems. With its energy-efficient floor heating thermostat design, it ensures optimal comfort while preventing overheating.

Specifications

What's Included:

• 1x Manual thermostat for underfloor heating
• 1x Remote floor sensor
• 2x Fixing screws
• 1x Installation manual

Key Features:

• Reliable Heating Control – On/off control output for heating devices
• Built-in Safety – 2-pole safety power switch for added protection
• Versatile Sensors – Includes a built-in 10K NTC sensor and an external floor sensor
• Multiple Control Modes – Choose from three different control settings
• Floor Protection – Automatically shuts down heating if the temperature exceeds the set limit, preventing damage to wooden floors

Technical Data:

• Voltage: AC 100-240V, 50/60Hz
• Power Consumption: 5W
• Power Load: 16A*
• Temperature Range: 25°C - 55°C
• Switching Differential: ±1°C
• Ambient Temperature: -5°C to 40°C
• Protection Rating: IP20
• Housing Material: Flame-resistant PC
• Floor Sensor: Thermoplastic 10K NTC sensor with a 3m cable
• Dimensions: 86mm x 86mm x 16mm (flush mount)
• Certification: CE

Optimize Your Underfloor Heating Temperature Control

The Nuwarm Manual Thermostat is the best thermostat for electric underfloor heating, providing seamless temperature adjustments and long-term reliability. Designed with underfloor heating temperature control in mind, it ensures efficient operation while protecting your flooring from overheating.

Important Note on Power Load:
The thermostat is rated for 16A, but for maximum durability, we recommend keeping the load below 12.8A.

The internal relay is designed according to EN 61810-1:2004 and EN 60730-1 standards, which use test conditions that do not fully reflect real-life applications. In practice, if the power load stays below 12.8A, the relay’s lifespan more than doubles compared to operation at 16A.
